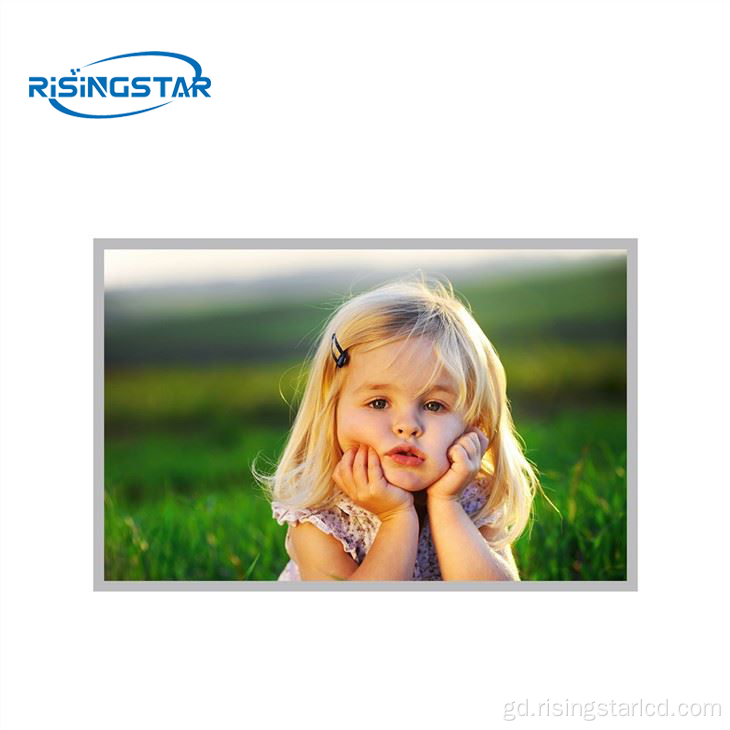

Modal Àir.: LQ156M1LG21
Tha rùn taisbeanaidh ann an LQ156M11 (RGB) × 1080 (FDB), co-mheas taobh de 16: 9 (Leud), agus tha na piogsail air an rèiteachadh ann an stiallan Rèisean RGB.
Is e sgìre taisbeanaidh Meud LQ156M11 344.16 × 193.59 (W × 177 (W) MM, Crìochnachadh letete loidhnichean uachdar, còmhdach cruaidh (3mh), cuideam lom 950g (max.)
A thaobh a thaobh raon-cùil, tha stòr solais Wled-Bution-Solas-allaidh air a chleachdadh, agus tha beatha seirbheis an stòr solais 50k uair aig an teòthachd obrachaidh. 0 ~ 70 ° C, agus an teòthachd stòraidh -30 \ 70 ° C.
| brand | Sharp | Model name | LQ156M1LG21 |
| size | 15.6inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×1080 FHD | Pixel configuration | RGB vertical bar |
| Display Area | 344.16×193.59(H×V)mm | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 349.0×198.4(H×V)mm | Contrast Ratio | 800:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 370×217×9.8(H*V*D) mm |
| Viewing Angle | 80/80/80/65 (Typ.)(CR≥10) | work environment | Storage temperature: 0 to 70 °C Operation Temperature: -30 to 70 °C |
| Signal interface | 30 pins LVDS (2 ch, 8-bit),erminal |
|
|
| supply voltage | 3.3V (Typ.) |
|
|
